Vol.1 No.3 NT13 (Nov., 2009) SheetB
Core shroud crack Removing Method by Grinding EJAM (1-3-NT13)SheetB - Core shroud crack Removing Method by Grinding

Hitachi-GE Nuclear Energy, Ltd.


Grinding is one of repairing methods in case of finding cracks at inner surface of core shroud. As shown in Fig.2, cracks are mechanically removed by grinding head mounted on access equipments. A view of area machined by grinding is shown in Fig.3. The characteristic of grinding is that machined surface is compressed (approx.400MPa) by underwater machining.

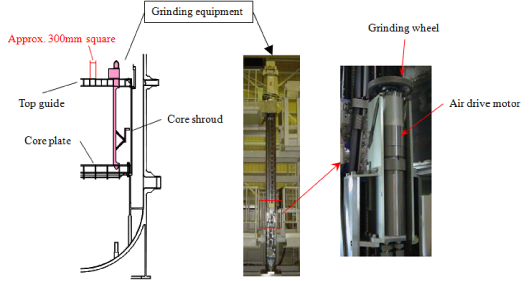

EJAM1-3-NT13(sheetB)-Fig.1_Grinding_equipment_for_inner_surface_of_core_shroud

Fig.1 Grinding equipment for inner surface of core shroud

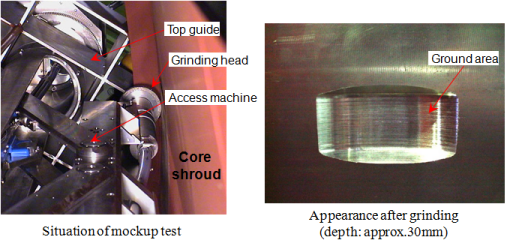

EJAM1-3-NT13(sheetB)-Fig.2_Situation_of_grinding_mockup_test

Fig.2 Situation of grinding mockup test
